How Much Does a 4' x 8' Diamond Plate Sheet Weigh?

Introduction

The weight of a 4’ x 8’ sheet of diamond plate will vary depending on the material type and thickness of sheet being considered.

Below is a guide for the most common thicknesses of 4’ x 8’ aluminum diamond plate sheets and the corresponding weights:

• 4’ x 8’ Aluminum Diamond Plate Sheet (.025” THICK) = 11.4 Pounds
• 4’ x 8’ Aluminum Diamond Plate Sheet (.045” THICK) = 20.6 Pounds
• 4’ x 8’ Aluminum Diamond Plate Sheet (.063” THICK) = 28.8 Pounds
• 4’ x 8’ Aluminum Diamond Plate Sheet (.080” THICK) = 36.6 Pounds
• 4’ x 8’ Aluminum Diamond Plate Sheet (.100” THICK) = 45.7 Pounds
• 4’ x 8’ Aluminum Diamond Plate Sheet  (.125” THICK) = 57.1 Pounds

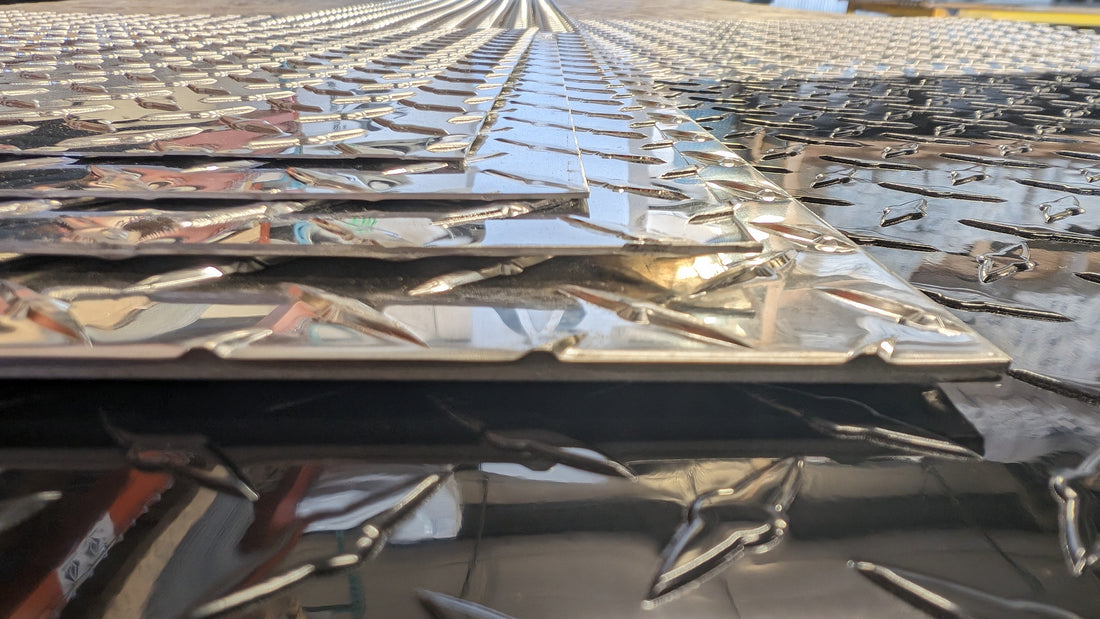

Diamond Plate Thickness and Protection

Here at Online Diamond Plate, we get a lot of inquiries asking us if we have thicker Diamond Plate sheets available for sale.   The short answer is “yes”, but the diamond plate weight becomes very heavy and more expensive as it increases in thickness.  Most of the time, using thicker sheets is overkill.

We almost always try to sell our customers to our .025″ Diamond Plate Sheets.

Most people purchasing our products are using them on the walls or over an already sturdy surface such as drywall.  In these cases, the .025″ product is a great choice.

If you are looking to beautify and strengthen an area that is already structurally sound, then you should only need our .025″ thick diamond plate.
